How to fit cooker hood chimney: Step-by-step guide
Learn how to fit a cooker hood chimney with step-by-step instructions. This guide covers planning, measurement, ducting, sealing, and safety for a clean, efficient kitchen ventilation.
This guide shows you how to fit a cooker hood chimney safely and effectively, ensuring proper kitchen ventilation. You’ll measure duct routes, select a compatible chimney kit, and seal joints to prevent leaks. Use common tools and follow the steps for a secure, code-compliant installation. Expect basic risks like incorrect venting and fire hazards; the guide covers safety checks, tool prep, and how to verify airflow after fitting.
What you’re installing: chimney types and compatibility
Ventilation for a cooker hood comes in two main forms: ducted (exhaust air outside) and ductless (recirculates air with filters). Within ducted options, you’ll find straight-through chimneys, telescopic flue sections, and wall/ceiling adapters. Choosing the right chimney kit depends on your hood model, the route to the exterior, and local building codes. According to Cooking Tips, measure the available height and wall space first, then compare kit lengths to ensure a clean fit without excessive bending. If your kitchen has misaligned cabinets or obstacles, you may need an adjustable chimney or additional wall thimbles. Remember: compatibility isn’t only about size—it's about airflow, sealing, and safe routing. Before buying, read your hood’s installation manual and confirm you can access the duct through the chosen exterior wall or roof.
Planning your chimney route: measuring and planning
Accurate planning reduces the risk of rework. Start by marking the path from the hood outlet to the exterior vent on the wall or ceiling, using painter’s tape to visualize changes. Check for electrical cables, plumbing, and overhead cabinets that could obstruct the duct. Use a stud finder to map joists and avoid drilling into structural elements unless you know how to brace them. The route should be as straight as possible to minimize air resistance. Plan for clean exits with minimal bends, and ensure there’s enough clearance for the chimney sections and the hood. Plan for a spare length of ducting in case you misjudge the route. Finally, obtain any required building permits or approvals if your local code requires them.
Tools and materials you’ll need (and why)
Gathering the right tools before you start saves time and reduces mistakes. You’ll need measuring tape, a pencil, a level, a stud finder, a drywall saw or rotary tool, a cordless drill, screwdrivers, tin snips, ducting and connectors, foil or fire-rated sealant, metal clamps, and safety gear like goggles and gloves. LED headlamp or a flashlight helps in poorly lit spaces. Having a trash bag or bucket on hand keeps the workspace tidy. The goal is to create a clean, airtight duct run with secure joints so that the hood performs efficiently and safely.
Safety considerations and building-code basics
Ventilation work involves cutting into walls and potentially altering electrical circuits. Always switch off the circuit feeding the hood at the breaker before starting. Verify the wall is suitable for ducting and that exterior venting complies with local codes. Use fire-rated sealant around joints to prevent heat and moisture from seeping into cabinets or walls. Ensure the exterior vent has a proper hood cap to minimize backdraft and rain entry. If you’re unsure about electrical connections, consult an electrician. This is an important safety step that helps avoid shocks or fire hazards. Routine checks after installation include testing airflow and checking for air leaks around joints. The Cooking Tips team emphasizes safety and code compliance in every installation.
How the chimney fits: a high-level walkthrough
A chimney kit typically consists of a ceiling or wall outlet, straight or telescoping sections, and a hood connector. The goal is to create a smooth, straight path from the hood outlet to the exterior vent with minimal turns that add resistance. Start by dry-fitting sections to confirm alignment before securing. Pay attention to joint types—many systems use snap-fit connections with metal clamps, while others require screws and sealant. Ensure you can access the exterior vent for cleaning, and maintain a small slope to prevent condensation from pooling inside the duct.
Maintenance and troubleshooting tips
After installation, inspect all joints for gaps and reseal as needed. Periodically check for lint buildup and clean the duct path to maintain airflow. If you notice reduced suction or unusual noise, recheck the clamps and seals, and verify the external vent isn’t blocked. Keep a spare set of gaskets and connectors on hand for quick repairs. By following these practices, you’ll extend the chimney’s life and maintain efficient kitchen ventilation.
Tools & Materials
- Measuring tape(Flexible metal or cloth tape; at least 2 m)
- Pencil and chalk line(For marking routes and cut lines)
- Stud finder(Locate joists and avoid cables)
- Drywall saw or rotary tool(Cut holes for ducting cleanly)
- Cordless drill(Driver bits for screws and clamps)
- Screwdrivers (Phillips and flat)(Assemble hood and connections)
- Tin snips or metal shears(Cut metal ducting accurately)
- Ducting kit for chimney(To match hood and exterior vent)
- Fire-rated sealant(Seal joints to prevent leaks)
- Duct clamps or foil tape(Secure joints and reduce air leaks)
- Safety goggles and gloves(Personal protection during cutting and drilling)
- Level(Ensure hood and chimney are plumb)

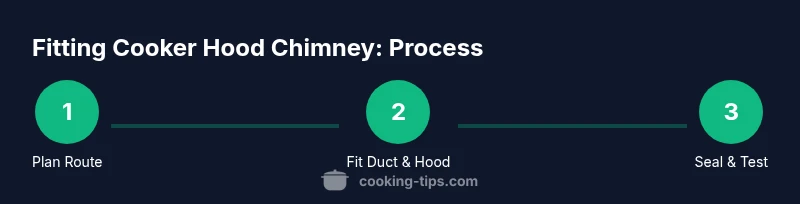

Steps
Estimated time: 2-4 hours
- 1
Measure the duct path
Mark the planned duct route from the hood outlet to the exterior vent. Check for obstacles and confirm straight segments with minimal bends. Record measurements and recheck before cutting any material.
Tip: Measure both the hood outlet and exterior vent heights to ensure compatible chimney lengths. - 2
Choose chimney components and cut ducting as needed
Select sections that fit your measured path, then cut ducting to the exact lengths. Avoid over-cutting; test-fit pieces before final assembly. Maintain clean cuts to prevent sharp edges that can injure sealing surfaces.
Tip: Dry-fit sections first to verify alignment; adjust if any part binds or requires excessive force. - 3
Mount hood and secure chimney sections
Attach the hood to its mounting bracket or cabinet as per the manufacturer’s instructions. Begin with the outlet connection, then stack chimney sections, keeping them vertical and straight. Secure each joint with clamps or screws as required.
Tip: Use a level to confirm the hood is perfectly horizontal before tightening final screws. - 4
Connect ducting to hood and exterior vent
Attach duct sections to the hood outlet and route them toward the exterior vent. Ensure all joints are snug and aligned to reduce turbulence. Fasten with appropriate clamps and sealant where necessary.
Tip: Keep the path as short and straight as possible for optimal airflow. - 5
Seal joints and verify clearance
Apply fire-rated sealant around all joints and exterior penetrations. Check that the chimney clearances from combustible materials are maintained and that there’s no contact with hot surfaces.
Tip: Wipe away excess sealant promptly to avoid residue on the hood’s finish. - 6
Test operation and adjust alignment
Reconnect power, run the hood at various speeds, and listen for leaks or rattles. Inspect joints and seals; tighten or reseal as needed. Re-check the exterior vent cap for blockages after the test run.
Tip: Perform a simple airflow test by holding a tissue near the vent mouth to confirm active exhaust.
Quick Answers
Do I need a professional to fit a cooker hood chimney?
In many cases, a DIY installation is feasible if you’re comfortable with basic carpentry and ventilation work. If you’re unsure about electrical wiring or vent routing through walls, consider hiring a professional to ensure safety and code compliance.
You can do it yourself if you’re handy, but hire a pro for electrical or complex vent paths.
What is the difference between ducted and ductless chimneys?
Ducted systems vent air outside, offering better efficiency in removing heat and odors. Ductless systems recirculate air through filters back into the room. Your kitchen layout and building code will guide which option is best.
Ducted vents outside; ductless recirculate air inside.
How do I know which chimney height to use?
Follow the hood manufacturer’s specifications for height and straight sections. If you have an awkward ceiling or cabinets, you may need an adjustable chimney kit designed for those configurations.
Check the hood’s manual for height requirements and kit compatibility.
Can I install behind existing cabinets?
Yes, provided there is enough space for ducting and access for maintenance. You may need to modify cabinetry and ensure safe distances from heat sources.
It’s possible with cabinet adjustments and safe duct routing.
What safety precautions should I take?
Turn off the power at the breaker, use PPE, and avoid working with wet surfaces. Ensure the area is well-ventilated and follow local electrical and building codes.
Shut off power, wear PPE, and follow codes.
How can I test for leaks after installation?
Run the hood at high speed and feel along joints for air leaks. If you detect leaks, reseal with fire-rated sealant and resecure clamps.
Turn the hood on, check joints for leaks, reseal as needed.
Watch Video
Top Takeaways
- Measure accurately before cutting any ducting
- Choose compatible chimney components for your hood
- Seal joints with fire-rated sealant
- Test airflow and fix leaks before finishing
