How to Fit a Cooker Hood: A Step-by-Step Guide for Home Cooks
An expert, practical guide to fitting a cooker hood: planning, venting options, mounting, wiring, and finishing touches for reliable kitchen ventilation.
By the end of this guide you'll be able to fit a cooker hood safely, whether converting from ducted to ductless or upgrading an existing installation. You'll plan space, choose venting options, mount the cabinet, and connect ducting and wiring with confidence. This article covers measurements, safety checks, tool lists, and stepwise instructions to ensure a quiet, efficient fit.
Why Fitting a Cooker Hood Matters
A properly fitted cooker hood protects your kitchen from smoke, steam, and cooking odours, improves indoor air quality, and helps keep cabinets and walls free from grease. For home cooks, a hood that performs well reduces cleaning time and supports healthier cooking environments. According to Cooking Tips, choosing the right hood size and venting approach matters as much as the installation itself. In this section we explore how ventilation works, why exhaust design influences performance, and how a good fit translates to quieter operation and better filtration in everyday meals. We cover basic concepts like extraction vs recirculation, CFM ratings, and the difference between ducted and ductless models so you can decide what's best for your kitchen layout and budget.
Assessing Your Kitchen for the Right Cooker Hood
Before you buy or mount anything, measure your cooking area and study the wall or ceiling where the hood will sit. Check the hood width against your hob and surrounding cabinetry to ensure a balanced look and proper airflow. Consider ceiling height, duct paths, and accessibility for maintenance. If you’re replacing an existing hood, note the current duct diameter and any obstructions in the route. The Cooking Tips team recommends listing required features (filter type, noise level, and lighting) and verifying that your chosen model meets local electrical and building codes. This planning saves time, reduces costly misfits, and leads to a safer, more efficient installation.
Ducted vs. Ductless: Venting Options
Ventilation options influence performance and expense. A ducted (exhaust) hood exhausts air to the outdoors, typically offering stronger suction and better odor removal, but requiring a duct run to the exterior. A ductless (recirculating) hood filters air through charcoal filters and recirculates it back into the kitchen, which can be easier to install in apartments or where external venting is not possible. Both types require proper ducting or filtration and regular maintenance of filters. In all cases, choose a model with the right CFM for your kitchen and ensure the duct path is as short and straight as possible to minimize resistance.
Measuring, Clearance & Positioning
Proper mounting height and alignment are key for optimal performance. Center the hood over the cooking area and maintain level mounting to avoid vibrations and uneven airflow. Check the manufacturer’s clearance recommendations and any cabinet constraints. Use a spirit level and a tape measure to mark drill points, then double-check before drilling. If installing above a range with tall pots, ensure sufficient clearance for comfortable operation and easy filter access.
Electrical and Mounting Considerations
Turn off power at the main switch before starting any electrical work. If your hood requires a dedicated circuit, plan for a switched outlet or a hardwired connection according to local codes. Install mounting brackets securely into structural elements and use appropriate fasteners. When wiring, follow the hood’s wiring diagram and keep connections protected in a junction box. If you’re unsure about electrical work, consult a licensed professional to avoid shocks or code violations.
Install Checklist and Common Mistakes
Use the step-by-step plan to avoid common missteps such as underestimating duct length, choosing the wrong filter type, or mounting on non-structural drywall. Confirm that the ducting is airtight with silicone sealant and check for air leaks after testing. Keep a clean workspace, label wires and ducts, and test the hood at various speeds before finishing the trim. A thorough test run helps catch issues early and prevents future service calls.
Authority Sources and Maintenance Tips
Here are trusted resources for ventilation best practices and ongoing hood care. For regulatory or safety guidance, see government and educational sources linked below. Regular maintenance includes cleaning filters, checking the fan for debris, and inspecting duct joints for leaks. The Cooking Tips team emphasizes following the hood manufacturer’s service schedule and replacing filters as needed to maintain performance over time.
Maintenance After Install
After installation, establish a routine to keep the hood performing well. Clean the filters as recommended, wipe grease from the hood surfaces, and check the ductwork for loose connections. If you notice reduced airflow, inspect the fan motor and filters first before seeking professional help. Keeping the area around the hood clear of dust and cooking residues helps sustain efficient venting and reduces the chance of grease buildup in hard-to-clean corners.
Tools & Materials
- Measuring tape(Long enough to measure hood width and duct path)
- Pencil and level(For marking and ensuring level mounting)
- Screwdriver set (Phillips and flat)(For fasteners and mounting brackets)
- Drill with bits(For wall or cabinet mounting points)
- Hole saw or jigsaw(To create duct access holes if needed)
- Tin snips or duct cutter(To trim ducting to fit length)
- Ducting kit (aluminium or metal)(Match external vent requirements)
- Silicone sealant or gasket maker(Air-tight seals at joints)
- Duct clamps or metal tape(Secure ducting and prevent leaks)
- Electrical tester or voltage tester(Verify power is off before wiring)
- Safety goggles and gloves(Personal protection during installation)
- Ladder or sturdy step stool(Access high mounting points)
- Wire nuts and junction box (if required)(For safe electrical connections)
- Masking tape or painter's tape(Mark paths without damaging finishes)

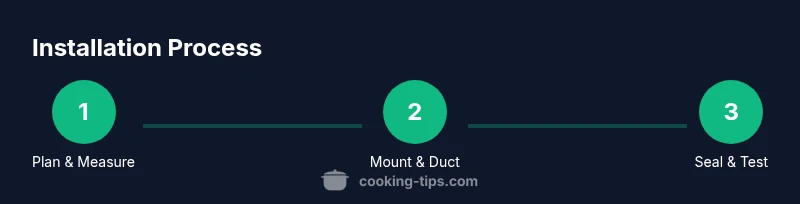

Steps
Estimated time: 2-4 hours
- 1
Plan and measure
Define the hood width relative to the hob and map the duct path. Check clearance above the cooktop and ensure enough space for filters and maintenance. Confirm electrical accessibility and the availability of a power supply.
Tip: Double-check all measurements twice before buying or cutting materials. - 2
Turn off power and prepare workspace
Switch off the circuit at the consumer unit and test that no power is present. Clear the area, protect countertops, and lay out tools for quick access. This reduces risk during mounting and wiring.
Tip: Label the circuit and keep a separate work area to prevent accidental energizing. - 3
Mark mounting points
Use a level to mark the wall or cabinet where brackets will attach. Align left-right with the hob center and verify that the hood will sit squarely above the cooktop.
Tip: Use painter’s tape as a guide to avoid chalk smudges on finishes. - 4
Install mounting brackets
Drill pilot holes and fix the brackets into solid framing or studs. Ensure brackets are level and capable of supporting the hood's weight.
Tip: Always anchor into structural elements; avoid mounting purely to drywall. - 5
Fit ducting and prepare the hood
Cut ducting to the necessary length, install any reducers, and connect to the hood’s exhaust outlet. Seal joints loosely with sealant to avoid leaks during testing.
Tip: Keep duct runs as short and straight as possible to maximize airflow. - 6
Mount the hood and connect electricals
Lift the hood onto brackets, align, and secure with screws. Connect wiring according to the manufacturer diagram, or hire a professional for hard-wired installations.
Tip: If unsure about wiring, hire a licensed electrician to prevent shock or code violations. - 7
Seal, test, and adjust
Apply silicone around joints and check for air leaks. Power the hood, test at low and high speeds, and listen for unusual noises or vibrations. Make any necessary alignment tweaks.
Tip: Run the hood with filters in place to ensure proper fit and ventilation efficiency. - 8
Final checks and maintenance plan
Record model details, take photos of the installed setup, and note maintenance intervals for filters and duct cleaning. Create a simple maintenance routine for ongoing performance.
Tip: Schedule filter checks every few months to maintain optimal airflow.
Quick Answers
Do I need to vent the hood to the outside, or is recirculation sufficient?
Venting to the outside generally provides the strongest performance, especially in busy kitchens. Recirculating hoods with carbon filters are easier to install in apartments or where external venting is not possible, but they don’t remove all odors as effectively. Choose based on your ducting options and local codes.
Most homes benefit from venting outside, but recirculation is a practical alternative where exterior venting isn’t feasible.
What tools do I actually need for this install?
Common tools include a tape measure, level, screwdriver set, drill, cutting tools for ducting, silicone sealant, duct clamps, and appropriate fasteners. Having a ladder and safety gear is also important for a safe installation.
Essential tools are a tape measure, level, drill, and sealant. Have a ladder ready for high mounting.
Can I do this myself or should I hire a professional?
If you’re comfortable with basic electrical work and cabinet mounting, you can install a hood yourself. For hardwired connections or complex duct routes, consult a licensed electrician or professional installer to ensure compliance with local codes.
Do-it-yourself is possible for simple ducted or ductless installs; otherwise hire a pro for safety and code compliance.
How do I choose the right hood size for my kitchen?
Match the hood width to your hob width and select a model with adequate CFM for your cooking volume. Consider air capture efficiency, noise levels, and filter maintenance when comparing options.
Choose a hood that matches your hob width and offers enough airflow for your cooking style.
What maintenance is required after installation?
Regularly clean grease filters, wipe the canopy, and inspect duct joints for leaks. Replace filters as recommended by the manufacturer and service the fan if you notice reduced airflow.
Keep filters clean and check duct joints; replace filters as advised by the hood maker.
Is it safe to install a cooker hood above a gas stove?
Yes, but ensure proper clearance and gas appliance regulations are followed. Use fire-rated panels if required and maintain adequate ventilation to avoid heat buildup near electrical components.
Gas stoves require careful clearance and code-compliant installation with proper ventilation.
Watch Video
Top Takeaways
- Plan layout before purchasing
- Vent type affects performance and install complexity
- Secure mounting to structural elements
- Test airflow and seal joints for efficiency
